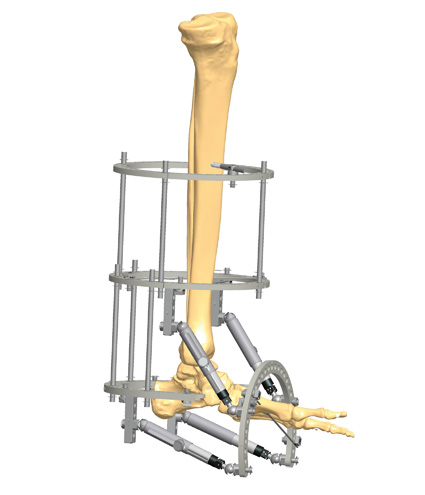

3E.6 Midfoot Deformity corrected with TrueLok and Rapid Adjust Struts.

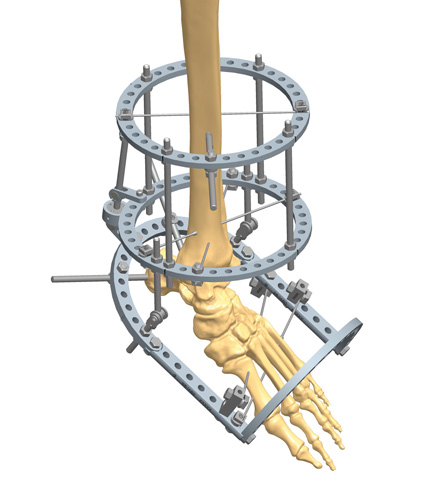

3E.7 Equinus deformity treated with TrueLok Fixator.

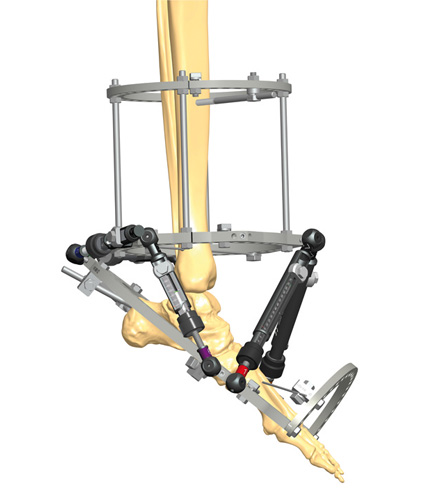

3E.8 Equinus foot deformity treated with TL-HEX. To stabilize the bone segment fixation, the TL-HEX ring is connected to TL ring creating a double-ring block. Note: this construct usually requires 2 ultra-short struts posteriorly.

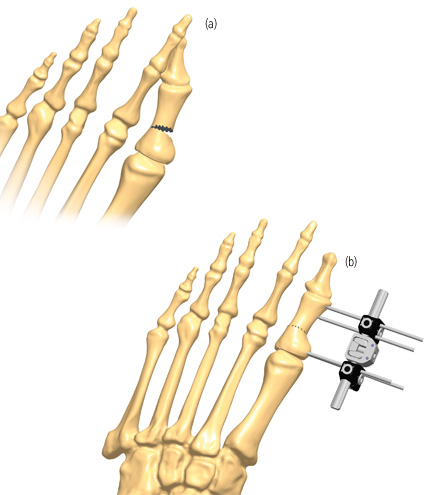

3E.9 (a) Deformity of proximal phalanx showing section of bone to be removed.
(b) Following removal of wedge of bone and stabilization with Minifixator (M400 series).

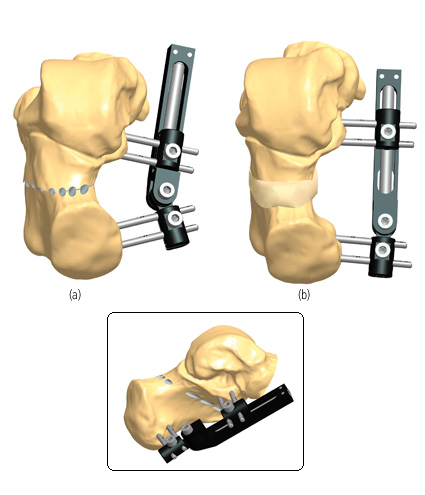

3E.10 Axial deviation of the calcaneus treated with the M100 series.
(a) M121 in place; osteotomy performed.
(b) Progressive correction of deformity.
Inset shows lateral view.
